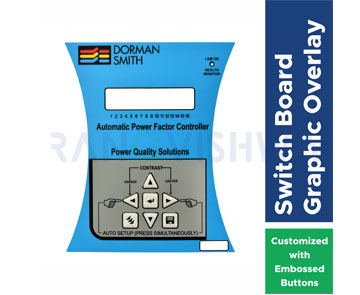

Switch Board Graphic Overlay with Embossed Buttons for APFC.

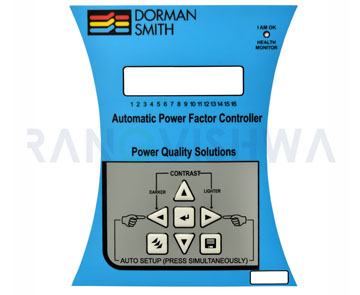

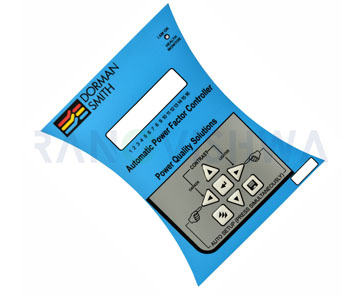

Switch Board Graphic Overlay with Embossed Buttons for Automatic Power Factor Controller unit, consisting of :

  • • Specific transparent area for LED & LCD display.

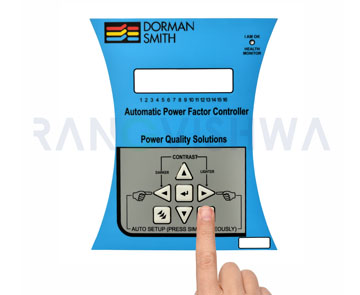

  • • Embossed button along with glossy effects.
  • • For achieving this shape, we have to make specific die tool, which will be based on drawing provided by our customer.
  • • Surface of overlay is fine finish but glossy effect for button area only.

Material Used for this overlay :

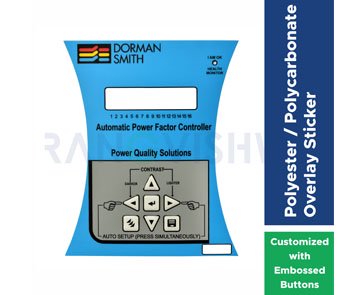

  • • For Overlay – Autotext F-150 coated polyester film

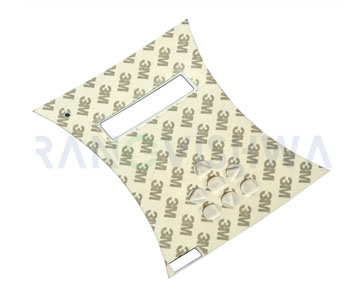

  • • Rear Adhesive – 3M91091

Few advantages of using Graphic Overlays :

  • • A Graphic Overlay / front fascia makes a powerful first impression of your company’s product / instrument / equipment.
  • • The graphic overlay is the first thing users see when they interact with equipment.
  • • It is an interface that connects the user to the machine, device or equipment.
  • • Graphic Overlay is also the outermost layer of the membrane switch assembly
  • • Graphically defining the locations of the LED, switches / buttons, displays areas for LED & LCD and explaining the operation of the equipment.
  • • An eye catchy Graphic Overlay increase the face value of the product & your Brand

Options available for Graphic Overlay :

  • • Customized Front Overlay layout.
  • • Graphics printed by screen printing or digital printing method as per customers need.
  • • Optional embossing for Logo, buttons & LED area.
  • • Surface finishing available: Glossy/Matt/Textured/Metal finish/Fine finish.
  • • Graphic overlays can be printed with a virtually unlimited range of colons.
  • • Laser cutting & die cutting for accuracy to meet drawing perfection.
  • Because most graphic overlay materials are transparent, the ability incorporate back lighting and display components is possible.
  • • ROHS compliance raw material.
