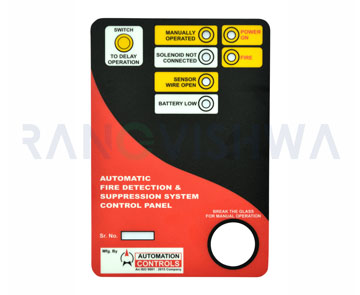

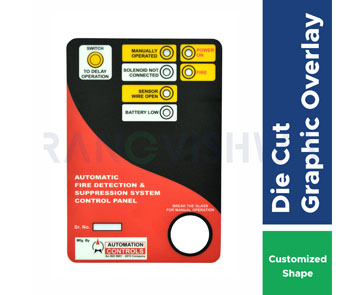

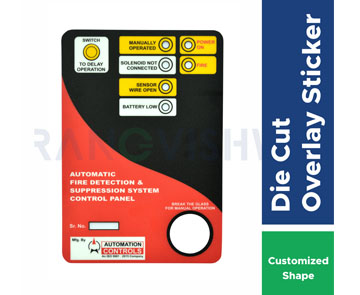

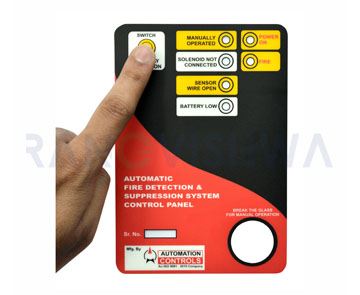

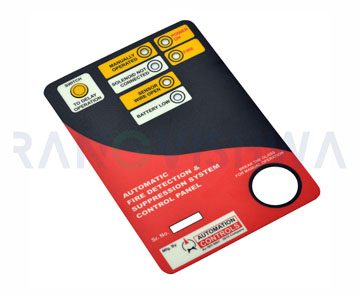

Graphic Overlay For Automation Control of Fire Detection.

This is Graphic Overlay is known as Die Cut Graphic Overlay used for Automation control equipment, consisting of :

  • • Specific area cut outs provided i.e. circle type cut out for push button.
  • • Transparent area along with strip insertion gap provided for Serial number of equipment
  • • For achieving this shape & cut outs we have to make specific die tool, which will be based on drawing or shapes provided by our customer.

Material Used for Die Cut Graphic Overlay :

  • • For Overlay – LEXAN, Polycarbonate Film

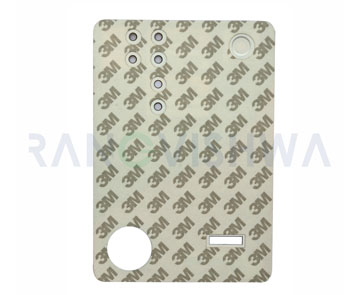

  • • Rear Adhesive – 3M91091

Few advantages of using Graphic Overlays :

  • • A Graphic Overlay / front fascia makes a powerful first impression of your company’s product / instrument / equipment.
  • • The graphic overlay is the first thing users see when they interact with equipment.
  • • It is an interface that connects the user to the machine, device or equipment.
  • • Graphic Overlay is also the outermost layer of the membrane switch assembly
  • • Graphically defining the locations of the LED, switches / buttons, displays areas for LED & LCD and explaining the operation of the equipment.
  • • An eye catchy Graphic Overlay increase the face value of the product & your Brand

Options available for Graphic Overlay :

  • • Customized Front Overlay layout.
  • • Graphics printed by screen printing or digital printing method as per customers need.
  • • Optional embossing for Logo, buttons & LED area.
  • • Surface finishing available: Glossy/Matt/Textured/Metal finish/Fine finish.
  • • Graphic overlays can be printed with a virtually unlimited range of colons.
  • • Laser cutting & die cutting for accuracy to meet drawing perfection.
  • Because most graphic overlay materials are transparent, the ability incorporate back lighting and display components is possible.
  • • ROHS compliance raw material.
