PCB Based Membrane Switch Keypad

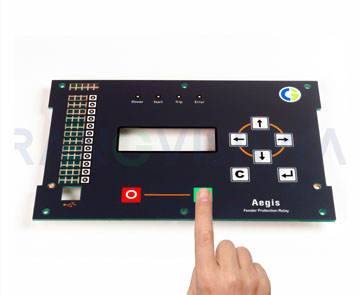

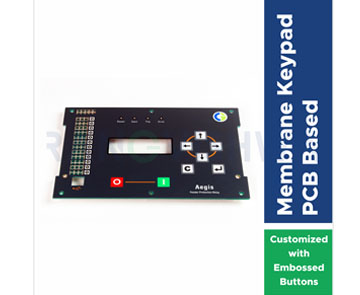

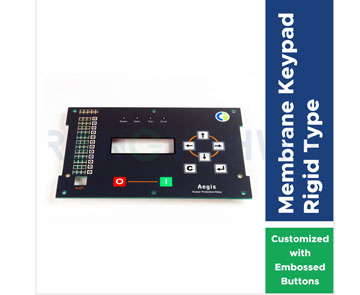

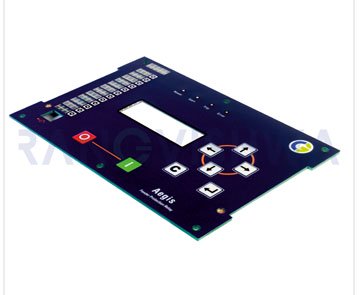

PCB Based Membrane Switch Keypad for Electronic Protection Relay with Embossed Buttons & ESD Protection.

• • Transparent Area on Overlay Display & LED
• • 16 SMD LED’s & 8 Metal Dome Switches Mounted on PCB.
• • 1.6mm Glass Epoxy FR4 pth Double Sided, Gold Plated PCB with Female FRC Connector.
• • ESD Mesh induced for protection of EMI/EMC Interference.

Layers of PCB Based Membrane Switch Keypad Consist of :

• • Overlay Graphic with eye catching appearance.
• • Overlay Adhesive
• • ESD Mesh
• • Adhesive spacer
• • Component assembled PCB (LED’s & Dome)
• • Rear adhesive
• • Insulation layer

Layers of PCB Based Membrane Switch Keypad Consist of :

• • For Overlay –Autotype – Autotex F 150 Coated Polyester film
• • 3M 467 back Adhesive
• • For ESD Mesh – Autotype CT4 circuitry film
• • Gold platted FR4 Printed circuit board
• • Insulation Sheet

Advantages of PCB Based Membrane Switch :

• • Durable & high life expectancy compare with PFC membrane switch.
• • Lower electrical resistance/higher conductivity.
• • Soldering of many component possible for this type of keypad.
• • Ideal for smaller designs where dense circuit patterns or trace routing limitations exist, by using plated thru-hole technology to utilize both sides of the PCB.
• • Can be used in extreme environments, and high-reliability/high-vibration environments.
• • Dustproof & Prevention from ingress of moisture & solvent.
• • Flexibility for using Connector.

Design Option available for Flexible Membrane Switch Keypad :

• • Customized front overlay.
• • Various kinds of finishes available for overlay like matt / glossy/textured/fine or selective area textured.
• • Embossing available for buttons, logos & LED area
• • Gold plated domes - for excellent conductivity.
• • Connector options available with pitch size 2.54 or 1.00 mm.
• • Available in Tactile or Non tactile based types.
• • Backlit option available.
• • EMI / ESD shielding optional.
• • ROHS Compliant material.
